Speaker Features

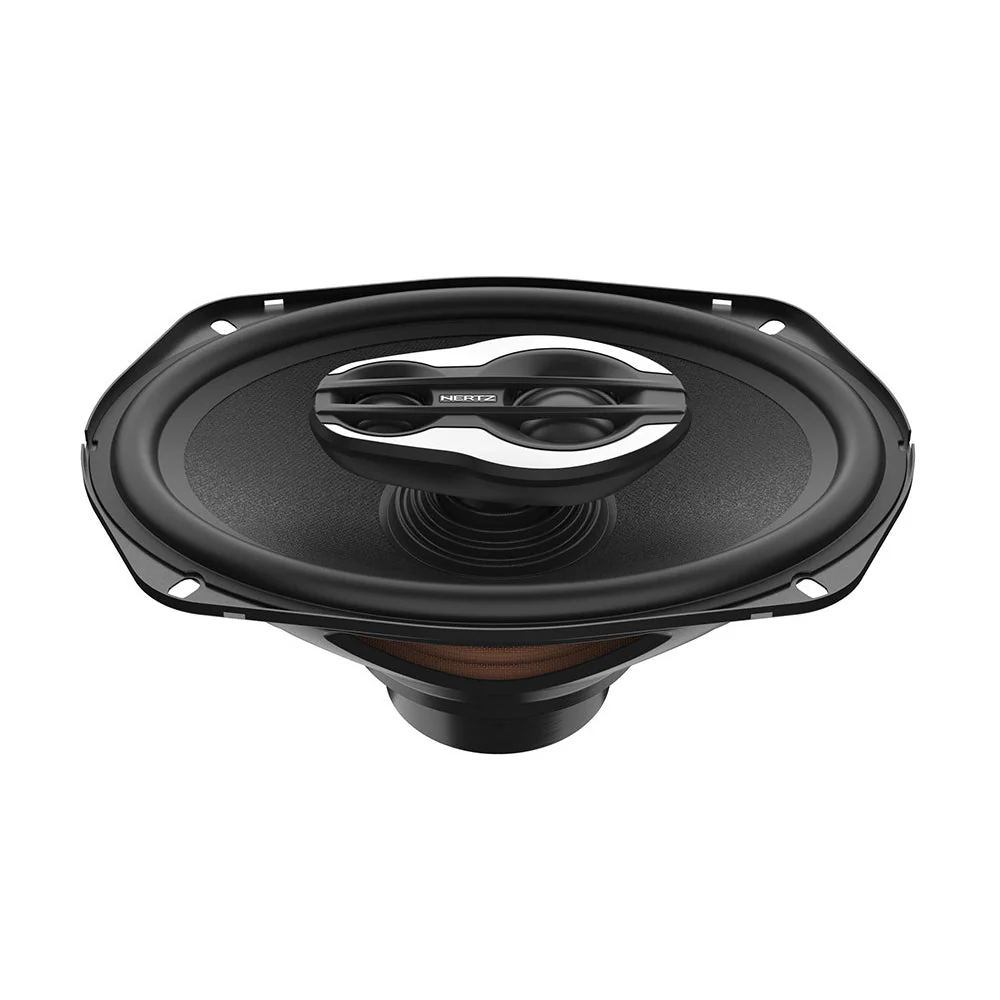

SX 690 NEO SPL COAXIALSX 690 is a real beast with an Hi-SPL Mid-Hi unit based on 1.4” dome tweeter and 1” dome supertweeter with resettable solid-state protection circuit. Cone are made with nature-proof high stiffness pressed-paper featuring innovative water/humidity resistant and anti-UV treatments. The double layer copper voice coil, wound on polyamide former ensures unparalleled power handling. New motors units are made of special Neodymium N38 H to obtain a minimum bulk and increased performance.
Speaker Specifications
| SPEAKER SPECIFICATIONS | |||||
|---|---|---|---|---|---|
| Hertz SX690NEO Full-Range Coaxial Speaker | |||||
| GENERAL | |||||
| Speaker Design | 3-Way | ||||
| DC Resistance (Ω) | 4 Ohm (Ω) | ||||
| Peak Power (Watts) | 260W | ||||
| Continuous Power (RMS) | 130W | ||||
| Sensitivity | 94dB | ||||
| Effective Frequency Range | 65-24k | ||||
| MOUNTING INFORMATION | |||||
| Mounting Hole Diameter | 6 X 8 4/5 (152.40 mm X 223.52 mm) | ||||
| Top Mount Depth | 3-3/8" | ||||
| Bottom Mount Depth | 3-5/8" | ||||
| Grille | No | ||||
| Warranty | 1 Year | ||||
